OLT GPON JOLink JL01-GL3 (1 PON) merupakan rebranding dari VSOL V1600GS

OLT ini merupakan OLT GPON yang berbentuk box dengan 1 PON saja

The price of V1600GS is very attractive and the performance is very strong. The splitting ratio of its PON port is 1:128, and the farthest transmission distance is 20KM. Its uplink and downlink bandwidth is ashighas:1.25Gbps/2.5Gbps. V1600GS can be widely used in FTTH, SOHO, small business office and other application scenarios

https://www.vsolcn.com/wp-content/uploads/2023/03/V1600GS-Datasheet-V1.1-EN.pdf

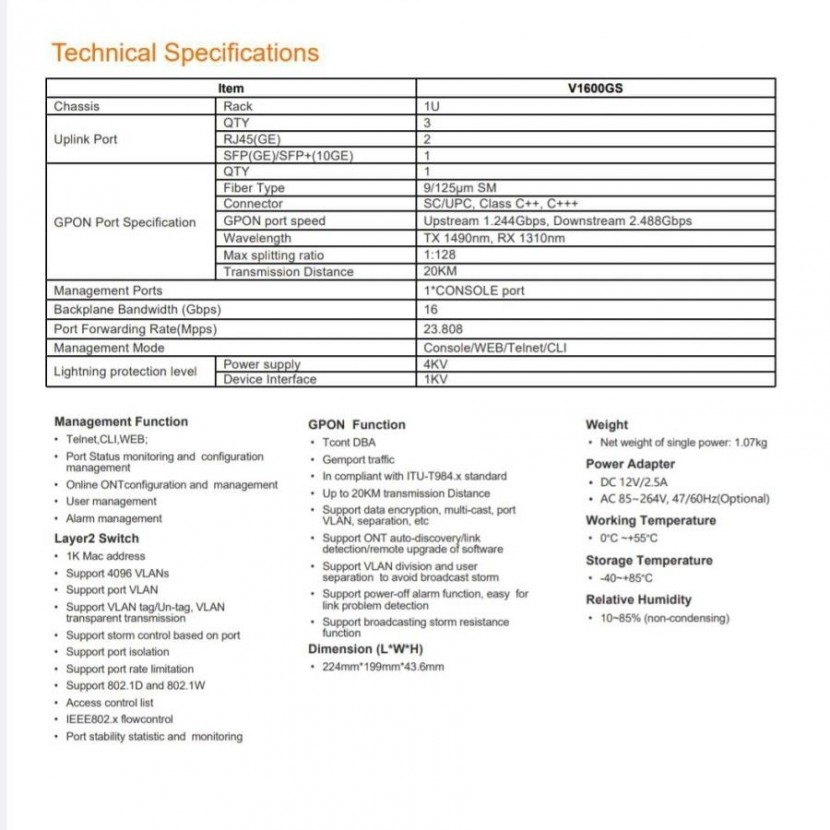

Management Function
Telnet,CLI,WEB Port Status monitoring and configuration management Online ONTconfiguration and management User management Alarm management
Layer2 Switch
1K Mac address
Support 4096 VLANs
Support port VLAN
Support VLAN tag/Un-tag, VLAN
transparent transmission
dapatkan hanya di RicherLink Surabaya
Support storm control based on port Support port isolation
Support port rate limitation
Support 802.1D and 802.1W
Access control list IEEE802.x flowcontrol Port stability statistic and monitoring

GPON Function
Tcont DBA
Gemport traffic
In compliant with ITU-T984.x standard
Up to 20KM transmission Distance
Support data encryption, multi-cast, port
VLAN, separation, etc
Support ONT auto-discovery/link
detection/remote upgrade of software
Support VLAN division and user separation to avoid broadcast storm
Support power-off alarm function, easy for
link problem detection
Support broadcasting storm resistance
function Dimension (L*W*H)
224mm*199mm*43.6mm

Weight
Net weight of single power: 1.07kgPower Adapter DC 12V/2.5A
AC 85264V, 47/60Hz(Optional)
Working Temperature 0C +55C
Storage Temperature -40+85C
Relative Humidity
1085% (non-condensing)
